W83627EHG

WINBOND LPC I/O, 128-QFP, Integrated Hardware Monitor functions, Single 24 or 48 MHz clock input

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.65~2.08 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.65~2.08

PartNumber:: W83627EHG

Brand:: Winbond - Winbond | Pack: DIP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Fish's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-10-20

From Other Seller

Part Number:W83627EHG
US $1.65 - 2.08
LM64P101

US $240.00 - 300.00 / Piece
(0) Remove
CM2030-A0TR

US $0.92 - 2.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

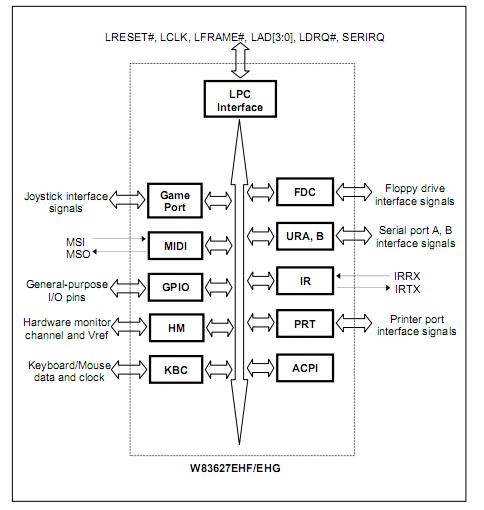

The W83627EHG is a WINBOND LPC I/O. It features a whole new interface, namely LPC (Low Pin Count) interface, which will be supported in the new generation chip-set. The W83627EHG is fully transparent in terms of software which means no BIOS or device driver update is needed except chip-specific configuration. The W83627EHG provides two high-speed serial communication ports (UARTs), one of which supports serial Infrared communication.

Parametrics

W83627EHG absolute maximum ratings: (1)Power Supply Voltage (3.3V):-0.5 to 6.5V ; (2)Input Voltage:-0.5 to VDD+0.5V ; (3)RTC Battery Voltage:2.2 to 4.0V ; (4)Operating Temperature:0 to +70℃; (5)Storage Temperature:-55 to +150℃.

Features

W83627EHG features: (1)Meet LPC Spec. 1.01; (2)Support LDRQ#(LPC DMA), SERIRQ (Serial IRQ); (3)Integrated Hardware Monitor functions; (4)Compliant with Microsoft PC2000/PC2001 Hardware Design Guide; (5)Support DPM (Device Power Management), ACPI; (6)Programmable configuration settings; (7)Single 24 or 48 MHz clock input; (8)It is 3.3V level but 5V tolerance support; (9)Compatible with IBM PC AT disk drive systems ; (10)Variable write pre-compensation with track selectable capability ; (11)Support vertical recording format ; (12)DMA enable logic ; (13)16-byte data FIFOs ; (14)Support floppy disk drives and tape drives ; (15)Detects all overrun and underrun conditions ; (16)Built-in address mark detection circuit to simplify the read electronics; (17)Support up to four 3.5-inch or 5.25-inch floppy disk drives ; (18)Completely compatible with industry standard 82077 ; (19)360K/720K/1.2M/1.44M/2.88M format; 250K, 300K, 500K, 1M, 2M bps data transfer rate ; (20)Support 3-mode FDD, and its Win95/98 driver.
