Product Summary
The 52610-1671 is a 1.00mm pitch FFC/FPC connector.
Parametrics
52610-1671 absolute maximum ratings: (1)Temperature Range - Operating: -40℃ to +85℃; (2)Current - Maximum per Contact: 1A; (3)Voltage - Maximum: 125V.
Features
52610-1671 features: (1)Circuits (Loaded): 16; (2)Contact Position: N/A; (3)Durability (mating cycles max): 30; (4)Entry Angle: Vertical; (5)Flammability: 94V-0; (6)Mated Height (in): 0.226 In; (7)Mated Height (mm): 5.75 mm; (8)Material - Metal: Phosphor Bronze; (9)Material - Plating Mating: Tin-Bismuth.

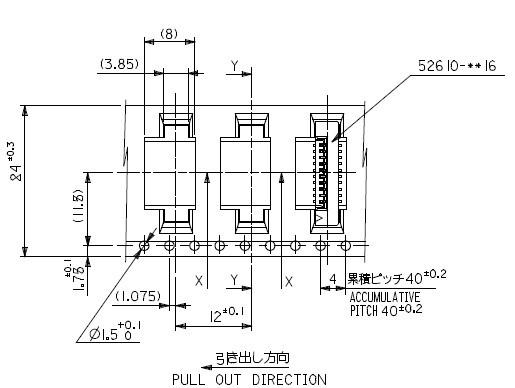

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 52610-1671 |
Molex |
FFC / FPC Connectors 1.0MM FFC/FPC 16 CKT Vert. SMT ZIF |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
 |
52610 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
52610-0672 |
Molex |
FFC / FPC Connectors 1.0 FPC ZIF SMT Hsg Assy 6Ckt EmbsTpPkg |
Data Sheet |
|
|
||||||||||||
|
52610-0778 |
Molex |
FFC / FPC Connectors 1.0 FPC ZIF Assy SMT MT ST 7Ckt EmbsTpPkg |
Data Sheet |
Negotiable |
|
||||||||||||
|
52610-1272 |
Molex |
FFC / FPC Connectors 1.0 FPC ZIF SMT Hsg Assy 12Ckt EmbsTpPkg |
Data Sheet |
|
|
||||||||||||
|
52610-0972 |
Molex |
FFC / FPC Connectors 1.0 FPC ZIF SMT Hsg Assy 9Ckt EmbsTpPkg |
Data Sheet |
|
|
||||||||||||
|
52610-1072 |
Molex |
FFC / FPC Connectors 1.0 FPC ZIF SMT Hsg Assy 10Ckt EmbsTpPkg |
Data Sheet |
|
|
||||||||||||
