Product Summary

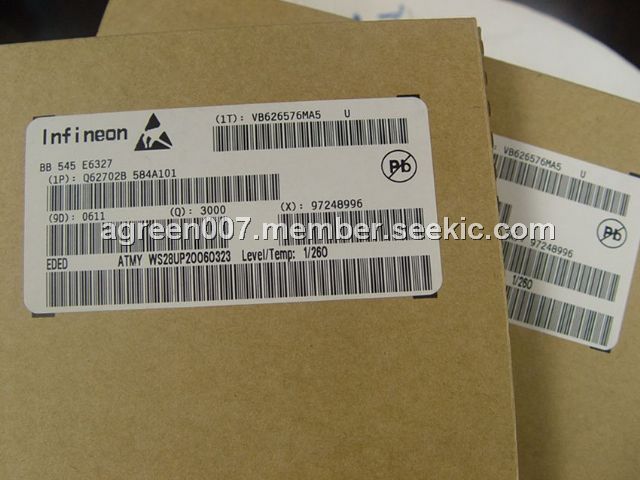

The BB545 E6237 is a Silicon Variable Capcitance Diode.

Parametrics

BB545 E6237 absolute maximum ratings: (1)Diode reverse voltage:30V; (2)Peak reverse voltage:35V; (3)Forward current:20mA; (4)Operating temperature range:-55 to 150℃; (5)Storage temperature:-55 to 150℃.

Features

BB545 E6237 features: (1)For UHF-TV-tuners; (2)High capacitance ratio; (3)Low series inductance; (4)Low series resistance; (5)Excellent uniformity and matching due to “in-line” matching assembly procedure; (6)Pb-free (RoHS compliant) package; (7)Qualified according AEC Q101.

Diagrams

BB545 E6237 package dimensions

BB545
BB545
Other

Data Sheet
Negotiable
