Product Summary

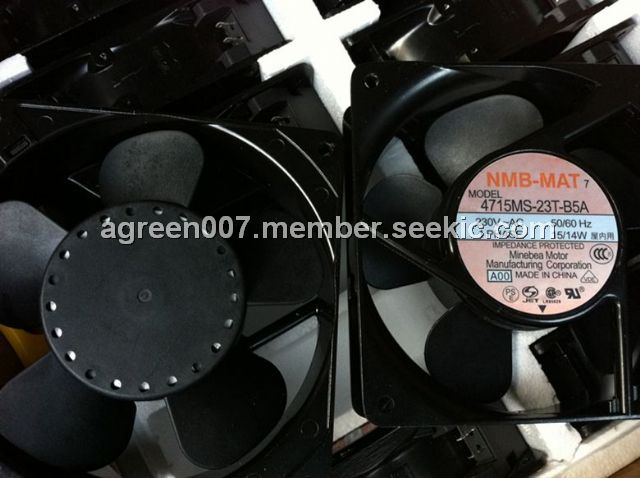

The 4715MS-23T-B5A-A00 is a fan.

Parametrics

4715MS-23T-B5A-A00 absolute maximum ratings: (1)FAN, 120MM, 230VAC; (2)External Height: 119mm; (3)External Width: 119mm; (4)External Depth: 38mm; (5)External Diameter: 120mm; (6)Current Type: AC; (7)Supply Voltage: 230VAC; (8)Current Rating: 120mA; (9)Flow Rate - Imperial: 102cu.ft/min; (10)Flow Rate - Metric: 2.9m3/min; (11)Noise Rating: 41dB; (12)Bearing Type: Ball; (13)Power Connection Type: Terminals; (14)SVHC: No SVHC (20-Jun-2011); (15)Bearing Style: Ball; (16)Depth: 38mm; (17)External Length / Height: 120mm; (18)Fixing Centres: 150mm; (19)Fixing Hole Diameter: 4.3mm; (20)Flow Rate: 41.6l/s; (21)Noise Figure Typ: 37dBA; (22)Panel Cutout Diameter: 114.5mm; (23)Power Consumption: 15W; (24)Supply Voltage Range: 230V AC; (25)Supply Voltage V AC: 230VAC; (26)Type: 120mm; (27)Voltage Rating V AC: 230V.

Features

4715MS-23T-B5A-A00 features: (1)allowable ambient temperature range: -10 ~ +70℃; (Operating); -40 ~ +70℃ (Storage) (non-condensing environment); (2)Motor Structure: Shaded Pole Induction Motor; (3)Motor Protection: Impedance Protection.

Diagrams

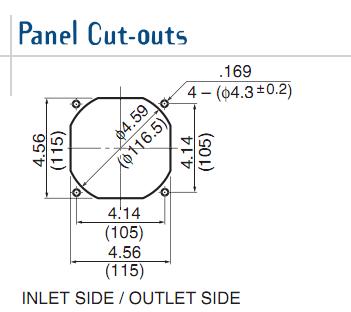

4715MS-23T-B5A-A00 dimensions
