Product Summary

Optimized to deliver a great Hi-Def visual experience when playing digital video content, the pn800 CD IGP mobile chipset delivers a high performance, advanced connectivity and power management features required for today’s thin and light performance notebooks ensuring an exceptional computing and entertainment experience anywhere. The pn800 CD features a robust 2D/3D graphics engine and the revolutionary Chromotion CE Video Display Engine, raising the bar for digital entertainment support on PC systems. The pn800 CD is able to deliver the Hi-Def experience via a comprehensive range of display devices, supporting outputs to CRT, LCD, standard definition TV and HDTV up to 1080p resolution.

Parametrics

pn800 CD general specifications: (1)Front Side Bus:800MHz; (2)Memory Channel:FastStream64 Single Channel; (3)Memory Support:DDR400; (4)Max Memory:16GB; (5)AGP Support:AGP 8X; (6)North/South Bridge:Link Ultra V-Link (1 GB / Sec).

Features

pn800 CD features: (1)Full support for the latest Intel? Pentium 4 Processors ; (2)Supports 400/533/800MHz Front Side Bus Settings ; (3)Supports up to 8GB DDR266/333/400 SDRAM; (4)Ultra V-Link 1066 MB/sec high bandwidth North/South Bridge interconnect; (5)Full Featured Accelerated Graphics Port (AGP) compliant with 8X/4X transfer modes; (6)Integrated VIA UniChrome Pro Graphics; (7)Optimized Unified Memory Architecture (UMA); (8)200MHz Graphics Engine Clock with separated 128-bit data paths; (9)128-bit 2D and 3D Graphics Engine; (10)Chromotion CE Video Display Engine.

Diagrams

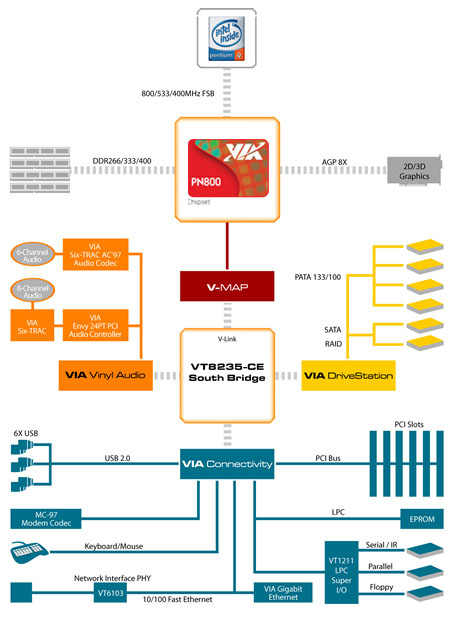

pn800 CD block diagram
