Product Summary

The SFW16R-2STE1LF is a FCI FFC/FPC Connector.

Parametrics

SFW16R-2STE1LF absolute maximum ratings: (1)Voltage Rating: 100 VAC/DC; (2)Current Rating: 1 A; (3)Actuation Type: ZIF; (4)Insulation Resistance: 500 MOhms; (5)Factory Pack Quantity: 4000; (6)Temperature Range: - 55 ℃ to + 105 ℃.

Diagrams

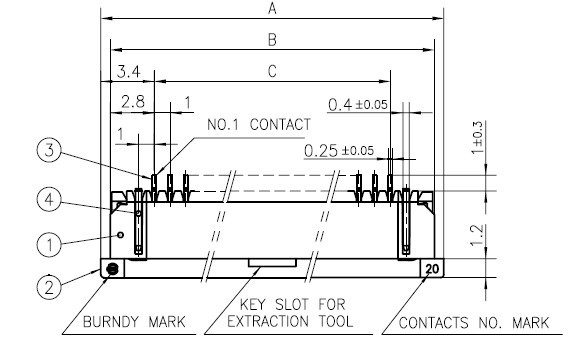

SFW16R-2STE1LF diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

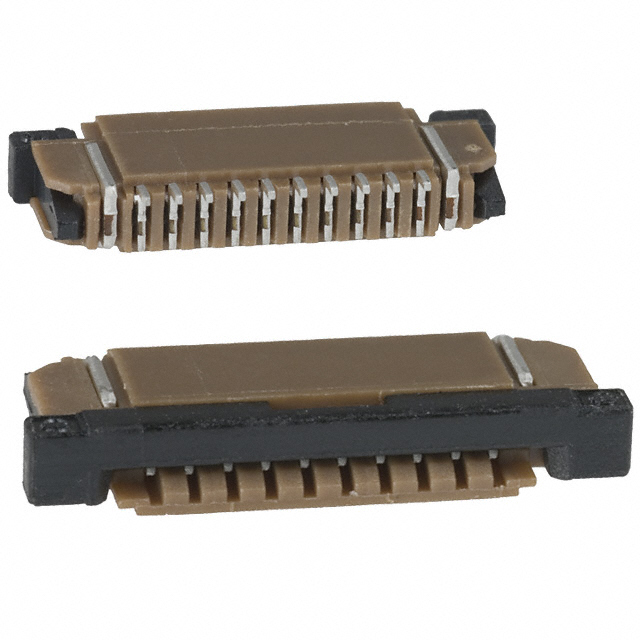

SFW16R-2STE1LF
SFW16R-2STE1LF
FCI
FFC / FPC Connectors 16P SIDE SMT ZIF UPPER CONTACT
Data Sheet
0-1: $0.32
1-25: $0.29
25-100: $0.27
100-250: $0.26
