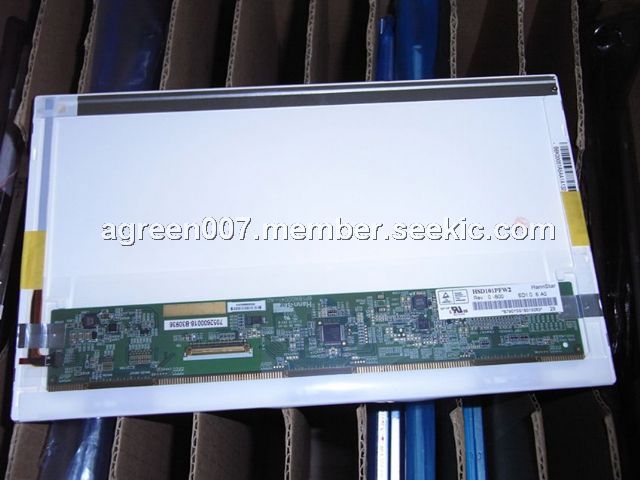

Product Summary

HannStar Display model HSD101PFW2 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This HSD101PFW2 model is composed of a TFT LCD panel, a driving circuit and a back light system. This TFT LCD has a 10.1 (16:9) inch diagonally measured active display area with WSVGA (1024 horizontal by 600 vertical pixel) resolution.

Parametrics

HSD101PFW2 absolute maximum ratings: (1)Logic Supply voltage VDD: -0.3 to 4.0 V; (2)Operating Temperature Topa: 0 to 50 ℃; (3)Storage Temperature Tstg: -20 to 60 ℃.

Features

HSD101PFW2 features: (1)10.1 (16:9 diagonal) inch configuration; (2)One channel LVDS interface; (3)262K color by 6 bit R.G.B signal input; (4)RoHS Compliance; (5)Halogen Free.

Diagrams

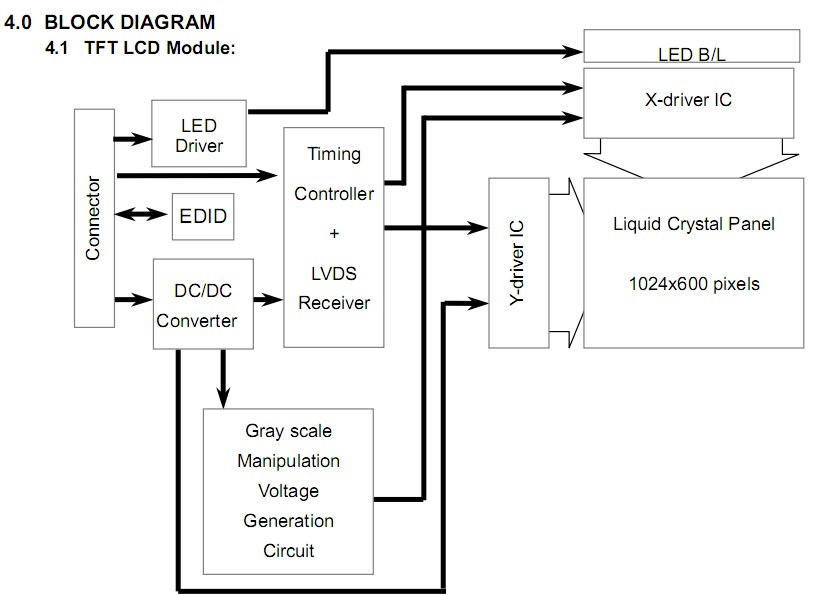

HSD101PFW2 block diagram
