Product Summary

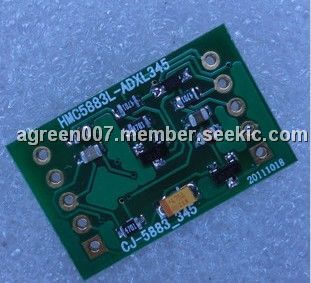

The HMC5883L is a surface-mount, multi-chip module designed for low-field magnetic sensing with a digital interface for applications such as low-cost compassing and magnetometry. The HMC5883L includes our state-of-the-art, high-resolution HMC118X series magneto-resistive sensors plus an ASIC containing amplification, automatic degaussing strap drivers, offset cancellation, and a 12-bit ADC that enables 1 ° to 2 ° compass heading accuracy. The I2C serial bus allows for easy interface. The HMC5883L is a 3.0x3.0x0.9mm surface mount 16-pin leadless chip carrier (LCC). Applications for the HMC5883L include Mobile Phones, Netbooks, Consumer Electronics, Auto Navigation Systems, and Personal Navigation Devices.

Parametrics

HMC5883L absolute maximum ratings: (1)Supply Voltage VDD: -0.3 to 4.8 Volts; (2)Supply Voltage VDDIO: -0.3 to 4.8 Volts.

Features

HMC5883L features: (1)3-Axis Magnetoresistive Sensors and ASIC in a 3.0x3.0x0.9mm LCC Surface Mount Package; (2)12-Bit ADC Coupled with Low Noise AMR Sensors Achieves 5 milli-gauss Resolution in ±8 Gauss Fields; (3)Built-In Self Test; (4)Low Voltage Operations (2.16 to 3.6V) and Low Power Consumption (100 μA); (5)Built-In Strap Drive Circuits; (6)I2C Digital Interface; (7)Lead Free Package Construction ; (8)Wide Magnetic Field Range (+/-8 Oe); (9)Software and Algorithm Support Available; (10)Fast 160 Hz Maximum Output Rate.

Diagrams

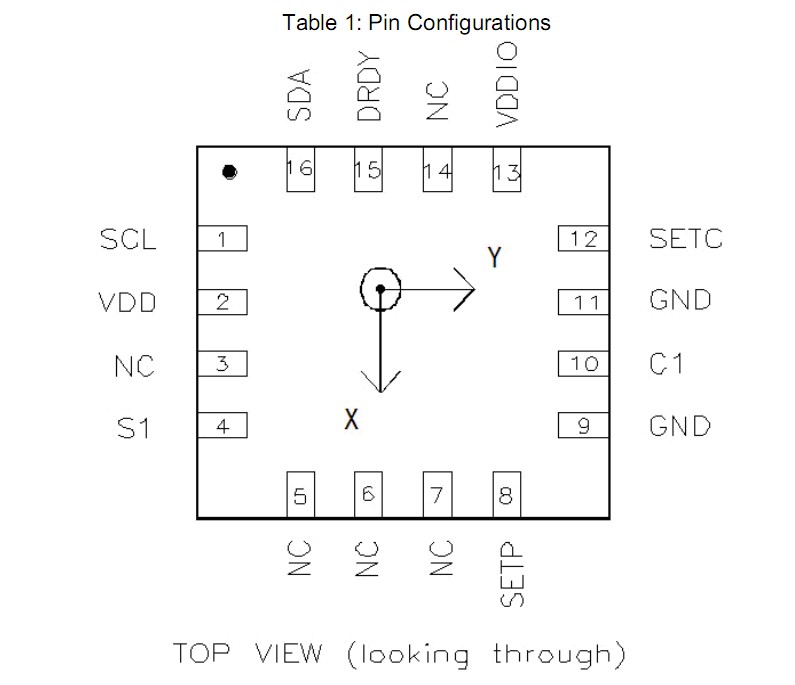

HMC5883L pin configuration

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
HMC5883L-DEMO
HMC5883L-DEMO

IC COMPASS 3 AXIS I2C DEMO KIT
Data Sheet
0-1: $142.50
HMC5883L-EVAL
HMC5883L-EVAL

IC COMPASS 3 AXIS I2C EVAL BOARD
Data Sheet
0-1: $60.00
HMC5883L-TR
HMC5883L-TR

IC COMPASS 3 AXIS I2C 16LCC SMD
Data Sheet
0-4000: $0.72
4000-24000: $0.68
