Product Summary
The LTN156AT01 is a color active matrix TFT (Thin Film Transistor) liquid crystal display (LCD) that uses amorphous silicon TFT as switching devices. The LTN156AT01 is composed of a TFT LCD panel, a driver circuit and a backlight system. The resolution of a 15.4" contains 1280 x 800 pixels and can display up to 262,144 colors. 6 O’clock direction is the Optimum viewing angle.
Parametrics
LTN156AT01 absolute maximum ratings: (1)Storage temperate: -20 to 60 ℃; (2)Operating temperate (Temperature of glass surface): 0 to 50 ℃; (3)Shock ( non-operating ): 240 G; (4)Vibration (non-operating): 2.41 G.
Features
LTN156AT01 features: (1)Thin and light weight; (2)High contrast ratio, high aperture structure; (3)Wide XGA (1280x800 pixels) resolution; (4)Fast Response Time; (5)Low power consumption; (6)Single CCFL; (7)DE (Data enable) only mode; (8)3.3V LVDS Interface; (9)On board EDID chip; (10)RoHS Compliance Product.

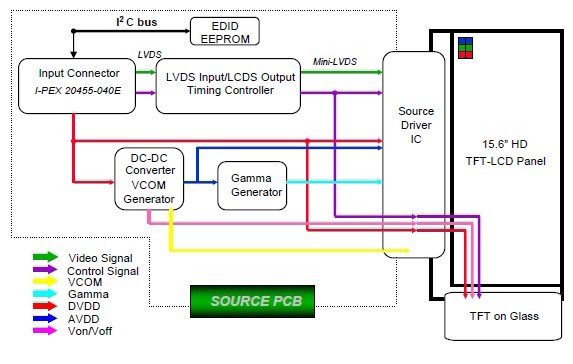

Diagrams
 |
