Product Summary
The 5kp30a is a glass passivated junction transient voltage suppressor.
Parametrics
5kp30a maximum ratings and characteristics: (1)Peak Pulse Power Dissipation on 10/1000&S waveform, PPPM: Minimum 5000 Watts; (2)Steady State Power Dissipation at TL=75&Lead Lengths .375”,(9.5mm), PM(AV): 8.0 Watts; (3)Peak Forward Surge Current, 8.3ms Single Half Sine-Wave Superimposed on Rated Load, (JECED Method), IFSM: 400 Amps; (4)Operating Junction and Storage Temperature Range, TJ,TSTG: -55 to +175 ℃.
Features
5kp30a features: (1)Plastic package has Underwriters Laboratory Flammability Classification 94V-O; (2)Glass passivated junction; (3)5000W Peak Pulse Power capability on 10/1000 &S waveform; (4)Excellent clamping capability; (5)Repetition rate(Duty Cycle): 0.05%; (6)Low incrementasurge resistance; (7)Fast response time: typically less than 1.0 ps from 0 volts to BV; (8)TypicaID less than 1&A above 10V; (9)High temperature soldering guaranteed: 300&/10 seconds/.375”,(9.5mm) lead length/5lbs., (2.3kg) tension.

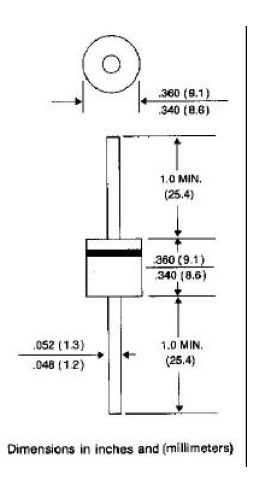

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 5KP30A |
Littelfuse |
TVS Diodes - Transient Voltage Suppressors 30Vso 23VAC 103A |
Data Sheet |
|
|
||||||||||||
 |
5KP30A/1 |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 5KW 30V 5% Unidir |
Data Sheet |
Negotiable |
|
||||||||||||
|
5KP30A-B |
Rectron |
TVS Diodes - Transient Voltage Suppressors 5% |
Data Sheet |
|
|
||||||||||||
 |
5KP30A/23 |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 5000W 30V Unidirect |
Data Sheet |
Negotiable |
|
||||||||||||
|
5KP30A/4 |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 5000W 30V Unidirect |
Data Sheet |
Negotiable |
|
||||||||||||
|
5KP30A/54 |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 5KW 30V 5% Unidir |
Data Sheet |
Negotiable |
|
||||||||||||
|
5KP30A-E3/54 |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 5000W 30V Unidirect |
Data Sheet |
|
|
||||||||||||
|
5KP30A-E3/73 |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 5000W 30V Unidirect |
Data Sheet |
|
|
||||||||||||
