Product Summary

The 1318228-1 is a 0.8mm Pitch Faxmodem Socket.

Parametrics

1318228-1 specifications: (1)Type: DIMM Socket; (2)Gender: SKT; (3)Number of Contacts: 124; (4)Pitch: 0.8 mm; (5)Termination Method: Solder; (6)Mounting: Surface Mount; (7)Body Orientation: Right Angle; (8)Number of Rows: 2.

Diagrams

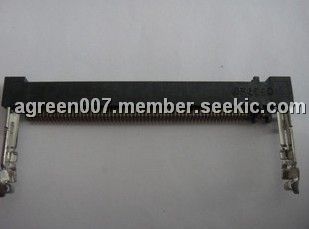

1318228-1 diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
1318228-1
1318228-1
TE Connectivity / AMP
IC & Component Sockets .8MM PITCH FAX MODEM
Data Sheet
0-2350: $2.95
