Product Summary

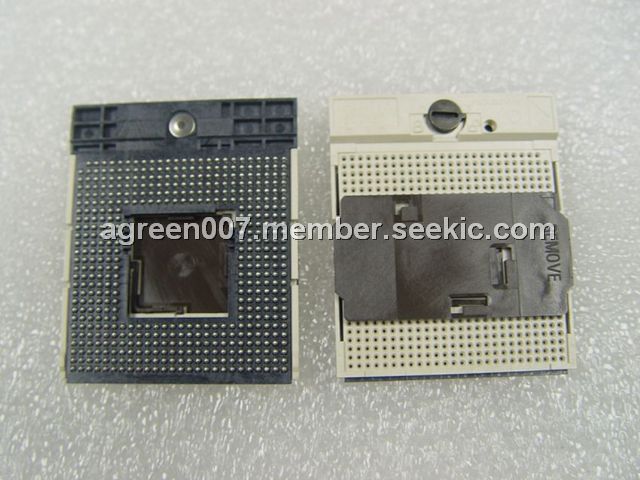

The mPGA479M is a Mobile Processor Micro-FCPGA Socket.

Parametrics

mPGA479M specifications: (1)Final mating resistance (average of minimum 40 pin/contact mated connections) ≤17 mW; (2)Mated loop inductance, Lloop <3.0 nH; (3)Maximum mutual capacitance, C ≤ 1.0 pF; (4)Socket minimum current rating @ 1.0A: Read & Record; (5)Pin-to-Pin/Connector-to-Connector insulation resistance (min)> 800 MΩ; (6)Measurement frequency for Pin-to-Pin/Connector-to-Connector capacitance: 400 MHz; (7)Measurement frequency(s) for Pin-to-Pin/Connector-to-Connector inductance: 1 GHz.

Diagrams

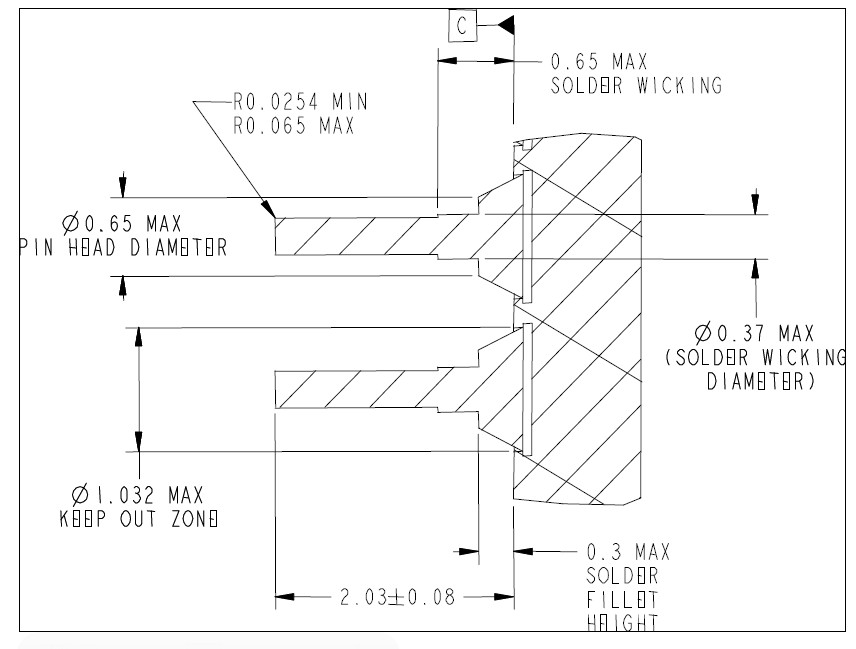

mPGA479M dimensions
