Product Summary

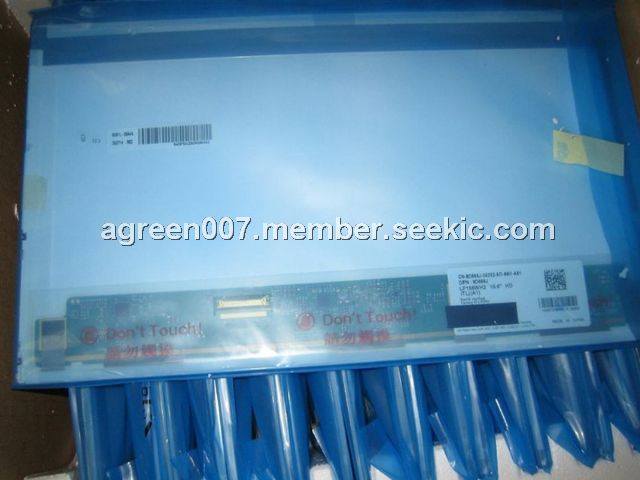

The LP156WH2-TLA1 is a Color Active Matrix Liquid Crystal Display with an integral Light Emitting Diode (LED) backlight system. The matrix employs a-Si Thin Film Transistor as the active element. It is a transmissive type display operating in the normally white mode. This TFT-LCD has 15.6 inches diagonally measured active display area with HD resolution(768 vertical by 1366 horizontal pixel array). Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in vertical stripes. Gray scale or the brightness of the sub-pixel color is determined with a 6-bit gray scale signal for each dot, thus, presenting a palette of more than 262,144 colors.

Parametrics

LP156WH2-TLA1 absolute maximum ratings: (1)Power Input Voltage VCC: -0.3 to 4.0 Vdc; (2)Operating Temperature TOP: 0 to 50 ℃; (3)Storage Temperature HST: -20 to 60 ℃; (4)Operating Ambient Humidity HOP: 10 to 90 %RH; (5)Storage Humidity HST: 10 to 90 %RH; (6)Operating Current per String ILED: 20 mA; (7)Power Consumption PLED: 3.5 to 3.7 Watt.

Features

LP156WH2-TLA1 features: (1)Active Screen Size: 15.6 inches diagonal; (2)Outline Dimension: 359.3(H, typ)209.5(V, typ)5.5(D,max)[mm]; (3)Pixel Pitch: 0.252mm 0.252 mm; (4)Pixel Format: 1366 horiz. By 768 vert. Pixels RGB strip arrangement; (5)Color Depth: 6-bit, 262,144 colors; (6)Luminance, White: 220 cd/m2(Typ.5 point); (7)Weight: 450g (Max.); (8)Display Operating Mode: Transmissive mode, normally white; (9)Surface Treatment: Hard Coating(3H), Glare treatment of the front polarizer.

Diagrams

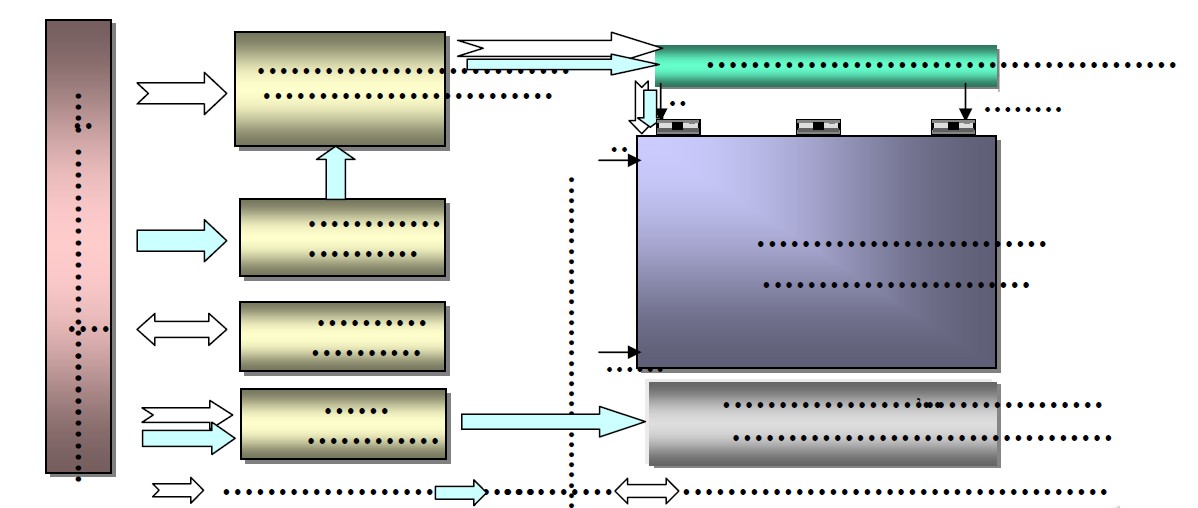

LP156WH2-TLA1 pin connection
